RF Sampler Element Wattmeter untuk Bird 43 frek 25 - 1000MHz, maksimum 500W

RF Sampler Element Wattmeter untuk Bird 43 frek 25 - 1000MHz, maksimum 500W
Brand BIRD	Dimensions 20x10x10cm (Berat volume: 0.33kg)	Model 4274-025
Frequency Range 25-1000 MHz	Maximum Power 500W	Attenuation 50 dB ± 2 dB (-66 dB at 2 MHz)
Sample Range Nominal 4274-025: -50 dB ± 2 dB (-66 dB at 2 MHz)	Frequency Range 25-1000 MHz	Maximum Power 500W

_ORIGINAL Element WATTMETER BIRD_#,
Cocok utk RF wattmeter model 43 THRULINE.

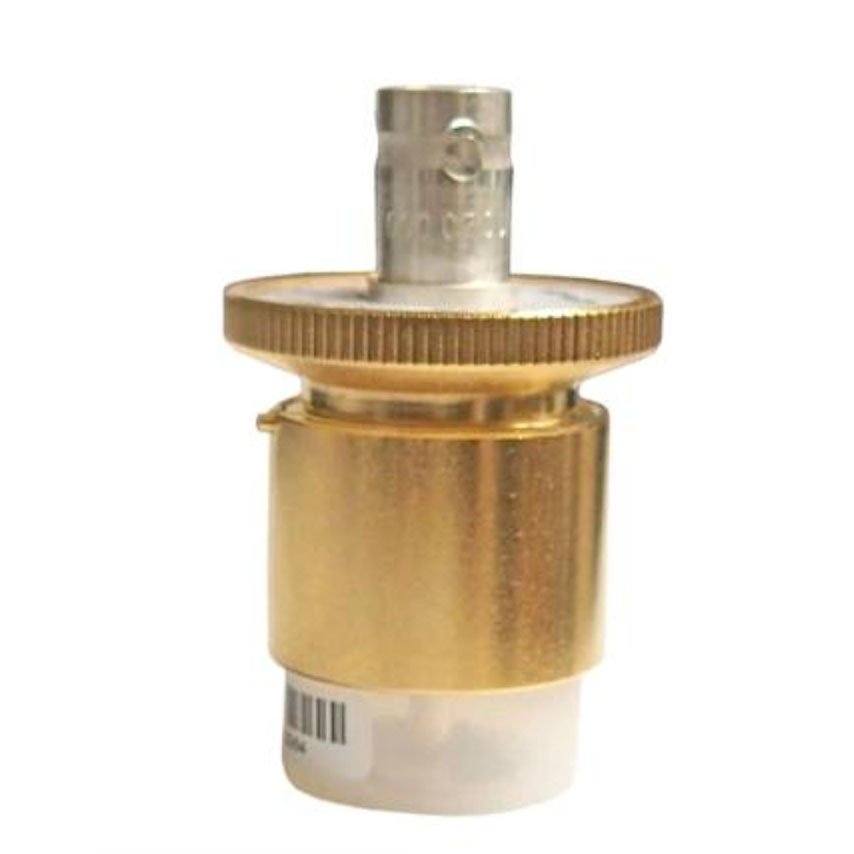

This item is a new Bird 4274-025 plug-in sampler element for your service bench for the Bird 43 wattmeters. This device is used to send an unrectified RF signal to another piece of test equipment like a spectrum analyzer, service monitor or oscilloscope. The output signal is a fixed -50 dB approximate from the signal passing through the wattmeter. The sampler is rated for operation from 20 to 1000 MHz. The sampling signal is available at a BNC connector on the unit.

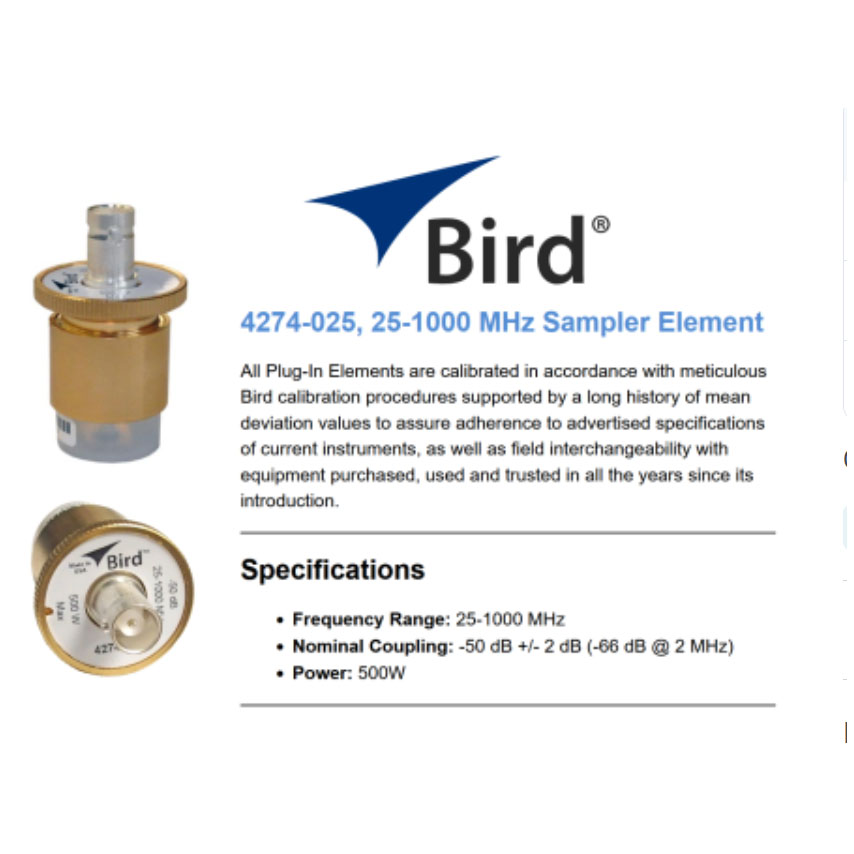

Non-Directional Sampler Elements for QC-Type or 7/8" EIA Line All Plug-In Elements are calibrated in accordance with meticulous Bird calibration procedures supported by a long history of mean deviation values to assure adherence to advertised specifications of current instruments, as well as field interchangeability with equipment purchased, used and trusted in all the years since its introduction.
